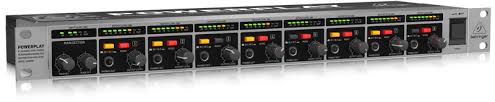

Behringer HA8000V2 8 Channel Headphone Amp
Behringer HA8000V2 8 Channel Headphone Amp

Behringer HA8000V2 8 Channel Headphone Amp

Vendor
Behringer MSRP: $224.99
Stock Number
XBHA8000V2
Regular price
Sold out
Sale price
$149.99

Offering 8 high-power amplifiers designed to drive loads down to 8 Ohms, the headphone amp has its own 8-digit, LED-output level meter for each channel. A Main In 1/Main In 2 select switch, a stereo or dual mono-select switch, and a 1/4" direct input for integrating an additional sound source is available. The front panel gives you a 1/4" phones output jack per channel.



Additionally, the main section features a dedicated 5-segment LED input meter, plus Main In 1 and Main In 2 level dials. Also, on the back panel there is an additional 1/4" phone output jack per channel, allowing up to 16 pairs of headphones to listen to 8 separate mixes at once. The back panel provides access to the HA8000's per-channel Direct Inputs and the Main 1 & 2 Inputs.



Finally, when a recording session calls for everyone's head and ears to be in the game, the Powerplay HA8000 V2 is an essential tool to get the job done. With 8 discrete channels and the ability to connect up to 16 sets of cans, this is one tool you will always use.

  • · Professional, multi-purpose headphones amplifier system for stage and studio applications
  • · Delivers sonic quality with virtually all types of headphones even at maximum volume
  • · 8 totally independent stereo high-power amplifier sections in one rack space
  • · 2 stereo main inputs for two independent mixes, accessible from all 8 output channels
  • · 8 independent direct inputs provide up to 8 individual stereo mixes
  • · Output level control and accurate 8-digit LED output meter per channel
  • · Mono/stereo switch per channel for more flexibility
  • · 1 front and 1 rear TRS phones connector per channel
  • · Direct input connector on each channel for easy connection to any sound source
  • · Parallel main outputs allow cascading of several headphones amplifiers
  • · "Planet Earth" switching power supply for maximum flexibility (100 to 240 V), noise-free audio, superior transient response plus, low power consumption for energy savings



Behringer HA8000V2 Specs

Number of Channels

8

Input Connections

2 x 1/4" TRS Phone (L/Mono, R) Main Input 1, Balanced
2 x 1/4" TRS Phone (L/Mono, R) Main Input 2, Balanced
8 x 1/4" Stereo Phone Direct Ins

Input Impedances

Main: 20 kOhms balanced / 10 kOhms unbalanced
Direct In: 15 kOhms

Line Max Input Level

+ 16 dBu

CMMR

> 50 dB

Headphone Outputs

8 x 1/4" TRS stereo on front panel
8 x 1/4" TRS stereo on back panel

Maximum Output Level

+24 dBm @ 100 Ohms
+19 dBm @ 8 Ohms

Function Controls

1 x Main In 1 Level Control Knob
1 x Main In 2 Level Control Knob
8 x Channel Output Level Control Knobs
8 x Main In 1/Main In 2 Channel Monitoring Switches
8 x Mono Channel Monitoring Switches

Frequency Response

10 Hz - 150 kHz, +/-3 dB

THD + N

0.007% typ. @ +4 dBu, 1 kHz, Gain 1

Noise

22 Hz - 22 kHz >80 dB @ 0 dBu

Dynamic Range

103 dB (22 Hz to 22 kHz)

Display

Input Level:
5-digit LED:
Output Level:
8-digit LED: -30, -24, -18, -12, -6, -3, 0 dB, CLIP

Specialties

Up to 150 kHz Frequency Response
Individual Output Level Displays
Individual Direct Inputs Per Channel

Power Supply

Autorange, 100-240 VAC, 50/60 Hz
Fuse: T1.25AL 250 V

Power Consumption

35 W

Dimensions

1.75 x 19 x 5.9" (44.5 x 482.6 x 149 mm)

Weight

4.2 lb (1.9 kg)
